| Optimized for 70-160°C continuous operation, these 100% PTFE felt filter bags resist 95% of industrial acids, alkalis and solvents. They achieve 0.1-1μm absolute filtration efficiency, feature a non-stick surface for easy dust release, and comply with ISO 14644-1 Class 5 standards for cleanroom environments in electronics and pharmaceutical manufacturing. | |||||||||

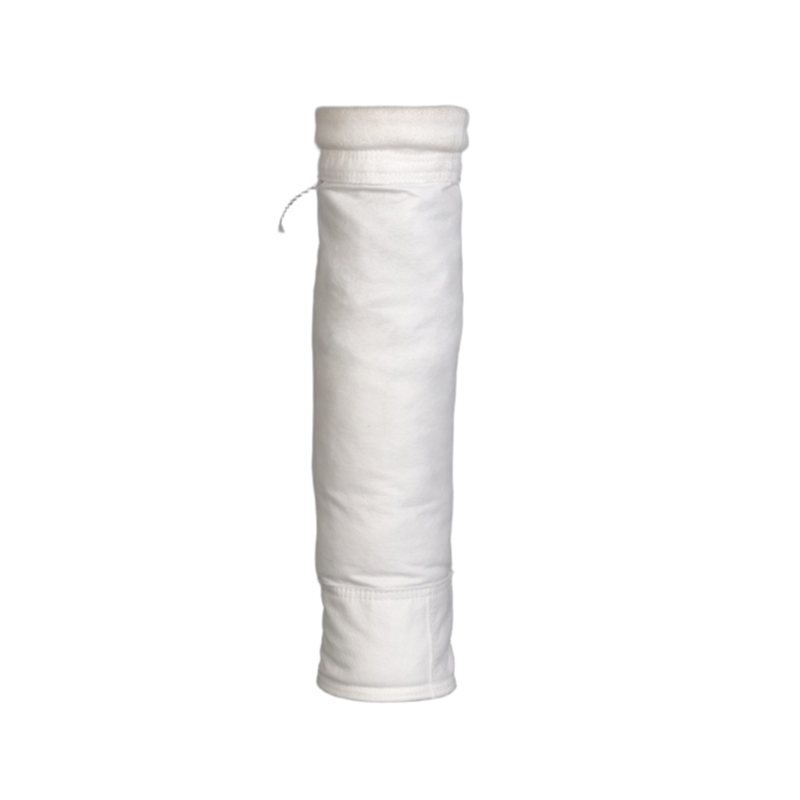

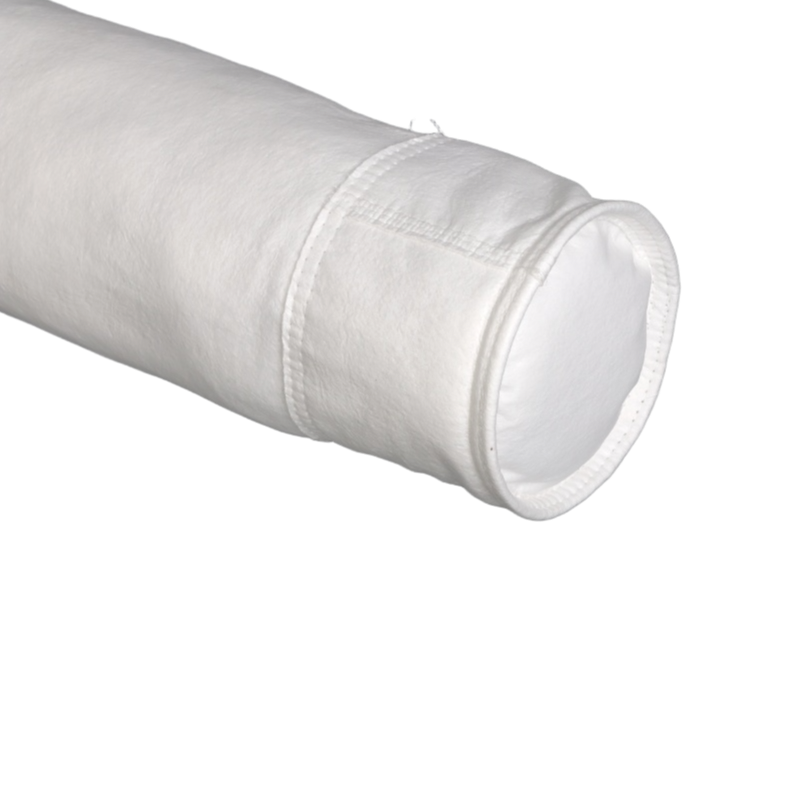

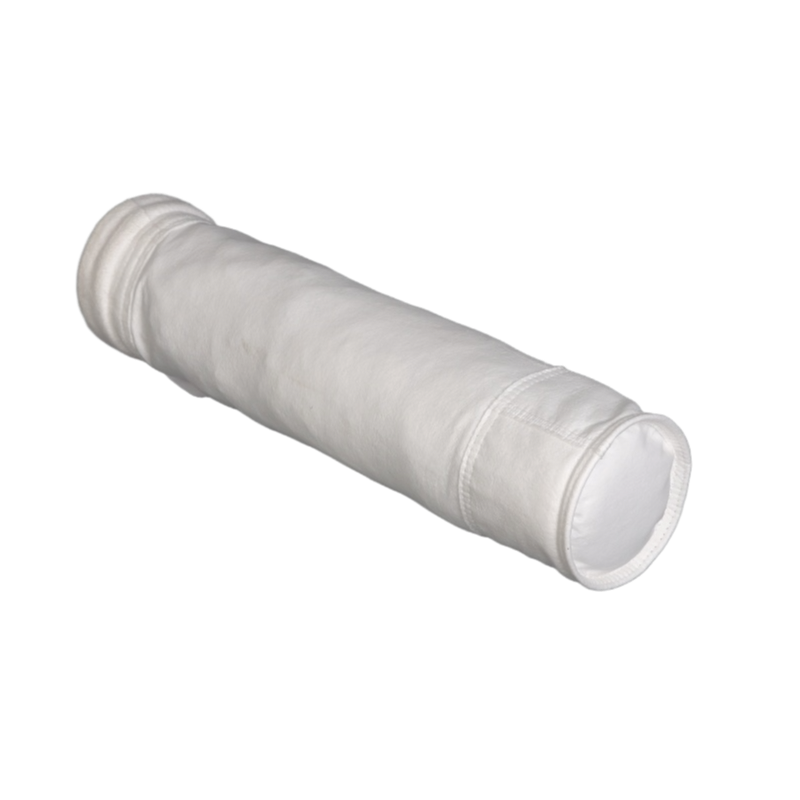

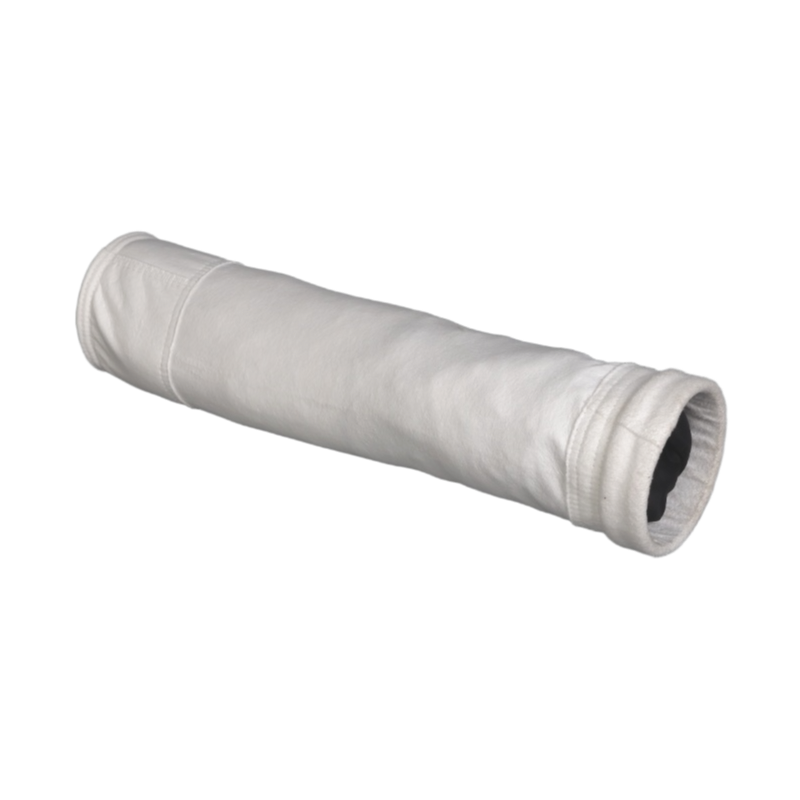

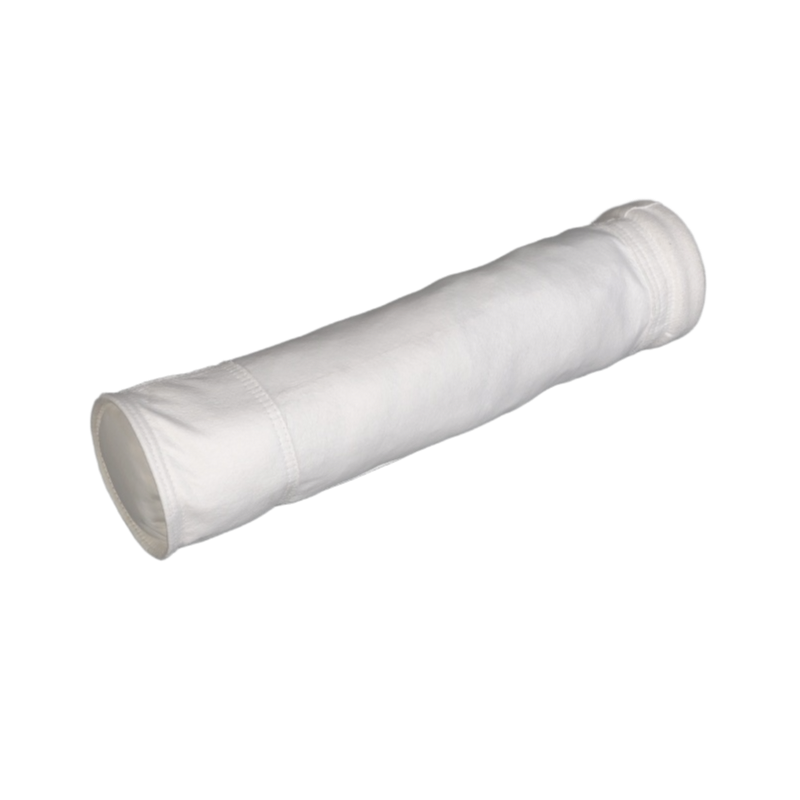

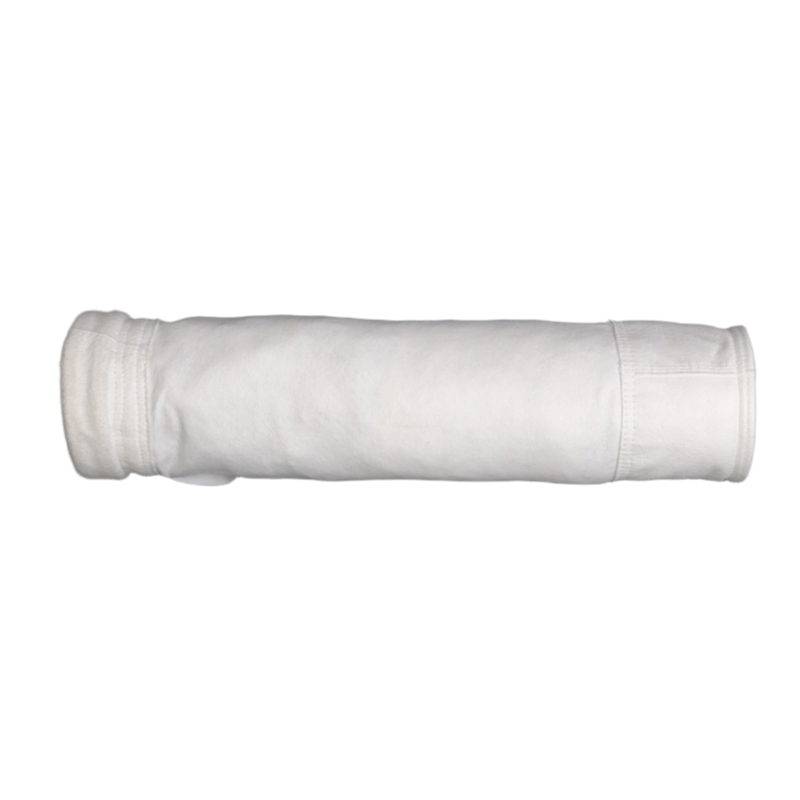

Medium-temp chemical-resistant PTFE dust filter bags, also known as polytetrafluoroethylene filter bags and chemical-resistant PTFE felt bags, provide filtration solutions for industrial environments requiring moderate temperature resistance and chemical inertness. Unlike high-temperature PTFE filters, these medium-temp variants operate between 70°C and 160°C (158°F and 320°F), balancing performance and cost for factory filtration systems. Constructed from 100% PTFE fiber felt, these bags resist acids, alkalis, and organic solvents, making them suitable for chemical processing and pharmaceutical manufacturing. Their non-stick surface minimizes dust cake buildup, maintaining consistent airflow and reducing maintenance frequency.
These filter bags are manufactured using nonwoven needling technology, where PTFE fibers are interlaced onto a PTFE base fabric to create a three-dimensional network structure. Heat-welded seams eliminate glue contamination, while reinforced edges prevent tearing under pulsating airflow conditions common in pulse-jet cleaning systems. The hydrophobic surface of PTFE reduces moisture absorption, preventing filter clogging in humid industrial environments.
The PTFE material resists attack from 95% of industrial chemicals, including sulfuric acid (pH 1), nitric acid, and strong bases (pH 14). Filtration ratings range from 0.1μm to 1μm, capturing submicron particles with greater than 99.9% efficiency in factory emissions. The bags operate continuously at 160°C (320°F) with short-term tolerance up to 180°C (356°F) during process surges. Differential pressure remains below 2.0 bar at standard airflow rates, and service intervals extend to 12-18 months with proper maintenance.
Parameter | Specification |
Material | 100% PTFE fiber felt |
Continuous Operating Temperature | 70°C - 160°C (158°F - 320°F) |
Short-Term Temperature Tolerance | Up to 180°C (356°F) |
Filtration Precision | 0.1μm - 1μm |
Filtration Efficiency | >99.9% for submicron particles |
Chemical Resistance | 95% of industrial chemicals (pH 1-14) |
Felt Thickness Options | 600g/m² - 1200g/m² |
Diameter Range | 120mm - 200mm |
Length Range | 1000mm - 6000mm |
Maximum Differential Pressure | 2.0 bar at standard airflow |
Service Life | 12-18 months |
Compliance Standards | ISO 14644-1 Class 5, FDA 21 CFR 177.1550 |
These PTFE filter bags perform effectively in factory settings with chemical exposure and moderate temperatures. In chemical manufacturing, they filter dust from pesticide synthesis, dye production, and polymer processing, resisting solvent vapors. In the electronics industry, they control particulate emissions in semiconductor fabrication, ensuring particle counts below 0.1μm in cleanroom environments. For food and beverage operations, they manage dust from flavoring agents and additive processing, complying with FDA 21 CFR 177.1550 regulations. In waste incineration facilities, they capture acidic fly ash in medium-temperature incinerators operating below 160°C that process non-hazardous waste.
Compared to conventional filter materials, these PTFE filter bags offer measurable operational advantages. They provide 2-3 times longer service life than acrylic or polyester bags in chemical environments, reducing replacement costs and production downtime. Maintaining consistent airflow with pressure drop increases of less than 0.5 bar annually, they lower fan energy consumption. Due to superior dust release properties, they require 50% fewer pulse-jet cleanings than woven polyester bags. The bags are compatible with both negative and positive pressure baghouse systems, offering flexible installation options for existing facilities.
Factory-specific customization ensures seamless integration with existing filtration systems. Engineers conduct airflow modeling and dust sampling to determine optimal bag dimensions and filtration ratings. PTFE felt thickness options range from 600g/m² to 1200g/m², selected based on dust loading and abrasiveness. Customization includes diameter (120mm-200mm), length (1000mm-6000mm), and end cap configuration (snap ring, flange, or weld-on). All samples undergo 500-cycle thermal shock testing between 70°C and 160°C to validate durability. Production utilizes glue-free welding technology for contamination-free manufacturing, with lead times as short as 10 business days for standard sizes.
These filter bags operate continuously between 70°C and 160°C, with short-term tolerance up to 180°C during process surges.
PTFE filter bags resist attack from 95% of industrial chemicals, including strong acids (pH 1) and strong bases (pH 14).
With proper maintenance, these filter bags have a service life of 12-18 months, which is 2-3 times longer than acrylic or polyester bags in chemical environments.
Yes, these PTFE filter bags meet ISO 14644-1 Class 5 standards, making them suitable for electronics and pharmaceutical cleanroom facilities.
Customization options include felt thickness (600g/m²-1200g/m²), diameter (120mm-200mm), length (1000mm-6000mm), and end cap configuration. All custom products undergo thermal shock testing before delivery.
Medium-temp chemical-resistant PTFE dust filter bags provide a balanced filtration solution for industrial operations requiring chemical resistance and moderate temperature performance. With customizable options and measurable operational benefits, they help commercial users reduce maintenance costs and meet regulatory requirements. Contact our engineering team to schedule a site analysis and determine the optimal filtration solution for your facility.
