| In addition to having the characterislics of the original sewing producton line,also add the funclion of the hot air welding,sewingmechine head and hot welding heed in one productinn ine, anly need io gperete conto!pane! meke the replecament oftheprodugtion process more convenient and fas! | |||||||||
Features
Multi-Process Integration: Combines four key processes in a continuous line: (1) fabric cutting (CNC cutter with ±0.5mm accuracy), (2) sewing (lockstitch machine with thread tension control), (3) hot welding (for PTFE, temperature-controlled at 280–320°C), (4) PTFE taping (for seam reinforcement, 20–50mm width tape).
Speed and Capacity: Produces up to 600 pieces of 6-meter filter bags in 8 hours (125 bags/hour) for standard polyester—for shorter 2-meter bags, capacity increases to 300 bags/hour. Adjustable speed controls (3–12 m/min) allow optimization for delicate materials (e.g., aramid, 3–5 m/min) or rugged polyester (8–10 m/min).
Precision Control: Digital temperature regulation for hot welding with ±2°C accuracy (via Omron E5CC temperature controller)—critical for PTFE and high-temperature materials, where 5°C temperature variation can cause weak welds. Vision sensors (Keyence IV2) inspect seams for defects (e.g., skipped stitches, uneven tape application) in real time.
Material Versatility: Handles filter media with thicknesses from 300–1200g/m², including: polyester felt (300–800g/m²), PTFE felt (600–1200g/m²), aramid felt (500–900g/m²), and glass fiber (800–1200g/m²). Quick-change tooling (15-minute setup) allows switching between material types.
Power Requirements: 4 kW (3-phase AC 380V, 50–60 Hz) with surge protection (up to 10 kV) to prevent damage from electrical spikes—common in manufacturing facilities.
Air Supply: Requires 4–5 kg/cm² compressed air (flow rate 100 L/min) for pneumatic functions (e.g., fabric clamping, tape feeding)—compatible with standard factory air systems.
Dimensions: 16000 × 800 × 1800 mm (L×W×H) footprint with integrated material handling systems (conveyor belts, fabric unwind stands)—fits in a standard 20m × 5m production bay.
Control System: PLC-based intelligent control with 15-inch touchscreen interface (Weinview MT8150iE) and remote monitoring capabilities (via Ethernet or 4G)—operators can adjust parameters, view production data, and troubleshoot remotely.
Component
 |  |  |  |  |  |
| Automatic feeding | Automatic sewing | Automatic hot air welding | Storage | Automatic fixed length cutting | Main control |
 |  |  |  |
| Automatic sewing | Automatic hot air welding | Gluing function | Hot sealing tape function |
Main Function
| Feeding function |
| Feeding detection function |
| Automatic rubbing the membrane fabric |
| Backing and returning of material |
| Needle lift feeding function |
| Breaking stop function |
| Computer adjustable needle gauge function |
| Machine needle cooling function |
| Hidden type threading lighting |
| Multifunctional adjustable edge device |
| One-click switching heads function |
| Automatic fixed length cutting function |
| Sharpening function |
| Automatic tape hot sealing (Optional) |

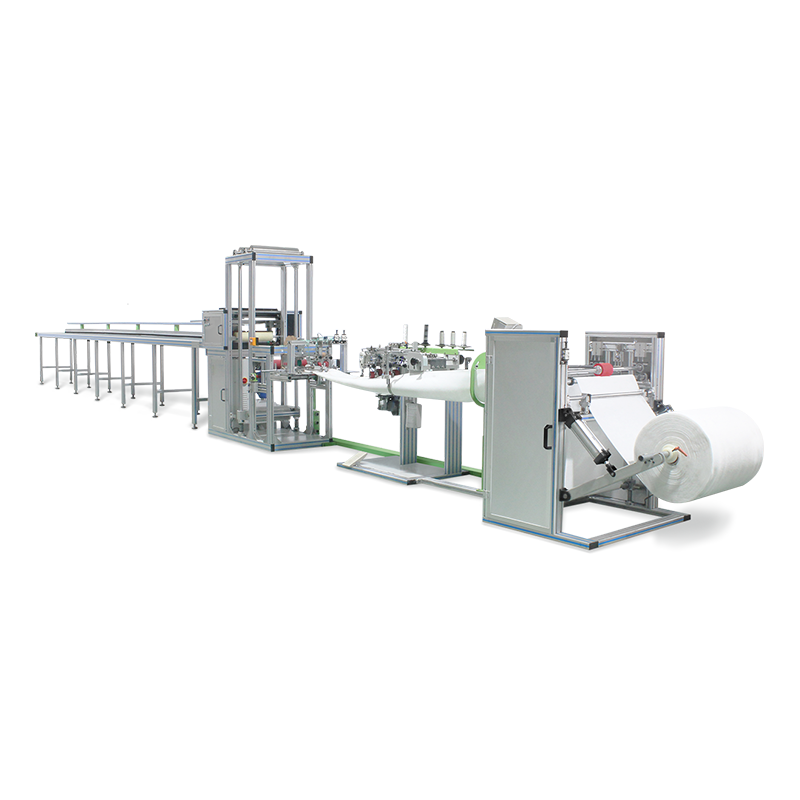

The SY-700-X Automatic Sewing & Welding Line serves filter bag manufacturers across industries, addressing diverse production needs:
Industrial Filtration Production: Manufactures standard and custom filter bags for dust collection systems in woodworking, metal fabrication, and food processing— a manufacturer in China increased output from 5,000 to 15,000 polyester bags/week after installing the line.
Specialty Filter Manufacturing: Produces high-precision PTFE and aramid filter bags requiring consistent weld quality (e.g., for power plants and chemical plants)—the ±2°C welding accuracy ensures weld strength meets ISO 10881-1 standards.
High-Volume Production Facilities: Enables mass production of standard polyester filter bags with reduced labor costs—one operator can run the line (vs. 3–4 for manual sewing), cutting labor costs by 60–70%.
Custom Filter Shops: Provides flexible production capabilities for small-batch, custom-designed filter bags (e.g., non-standard lengths, special seam types)—recipe storage for 50+ production configurations allows quick recall of custom settings.
