| This specialized tape sealer uses precision PID temperature control (±1°C accuracy) to bond PTFE or aramid tapes to filter media, creating hermetic seams that withstand extreme temperatures and chemical exposure. It operates at up to 15m/min, reduces reject rates from 8% to <1%, and is ideal for manufacturing filter bags for incineration and metal smelting. | |||||||||

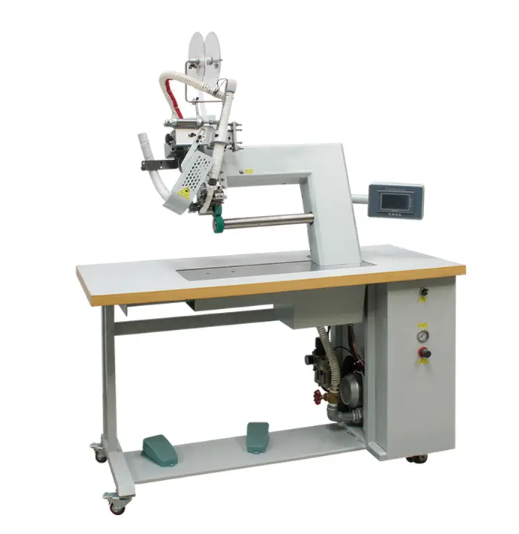

The SY-9288 Filter Bag Tape Hot Sealing Machine is specialized equipment designed for creating durable, temperature-resistant seams in industrial filter bags. This machine addresses a critical challenge in filter bag manufacturing: the pinholes and weak points created by conventional sewing methods that can compromise filtration efficiency and increase emissions. By using controlled heat and pressure to bond tapes to filter media, the system produces hermetic seals that withstand extreme temperatures and chemical exposure.
This equipment is suitable for sealing tapes across all temperature ranges of filter bags. Sealing tapes after sewing reduces discharge levels effectively. The machine features straightforward operation and stable temperature control, which contributes to improved production efficiency in commercial manufacturing operations.
Parameter | Value |
Tape width | 14-23mm |
Tape thickness | 0.08-2.5mm |
Operating speed | 5-30m/min |
Temperature range | 0-750°C |
Power consumption | 3.8KW |
Machine dimensions (L×W×H) | 1200×600×1650mm |
The machine is equipped with a digital PID controller (Omron E5CC) that provides temperature control with ±1°C accuracy, which is critical for bonding heat-sensitive materials such as PTFE with a melting point of 327°C. The pneumatic roller system offers adjustable pressure from 0.2-1.0 bar, creating uniform bond strength across material thicknesses ranging from 300-1200g/m². The system handles PTFE, aramid, and glass fiber tapes with either adhesive or heat-activated backings, supporting tape thicknesses from 0.1mm to 0.5mm.
The servo-driven feed system with optical edge alignment ensures tape placement accuracy within ±0.5mm, reducing material waste by 15%. The machine produces up to 450 linear meters of sealed seams per hour, with batch programming capabilities for consistent production runs. Its modular design accommodates various tape widths from 10-50mm and multiple filter materials, making it adaptable to different production requirements.
The equipment includes dual interlock safety guards, emergency stop buttons, and heat shields that meet CE EN 60204 safety standards. These features protect operators from thermal hazards during daily operation and maintenance procedures.
This high-temperature tape sealer is used in manufacturing filter bags for extreme industrial environments. In hazardous waste incineration facilities, it seals PTFE-coated glass fiber bags operating at 260°C, creating seams that resist acid corrosion. For aluminum smelting operations, the machine bonds aramid tapes to meta-aramid filter bags, producing seams that withstand 218°C temperature spikes.
In chemical processing plants, the sealer is used for PPS filter bags in sulfuric acid production, where welded seams prevent chemical ingress after 1000 hours of exposure to 30% H₂SO₄. It also manufactures biomass boiler filters for power generation, ensuring seams maintain integrity in 200°C flue gases containing sulfur dioxide.
Compared to sewing and manual taping methods, this automated system offers measurable performance improvements. Welded seams maintain 90% of their original strength after 500 thermal cycles between 20°C and 200°C, compared to 50% for stitched seams according to ASTM D5034 testing. The machine operates at 300% the speed of manual taping, reducing labor costs by 60% for high-volume manufacturers producing 10,000+ bags per week.
Automated operation eliminates human error in tape application, reducing reject rates from 8% for manual processes to less than 1%. Precision tape placement reduces material waste by 20%, resulting in savings of 0.50-1.00 per bag when using PTFE tape priced at $50 per meter.
Our customization process ensures compatibility with specific manufacturing requirements. Engineers evaluate filter material type, thickness, and production volume to recommend optimal roller configurations and temperature settings. The machine can be configured with 1-3 tape unwinding stations for multi-tape applications, with optional laser guides for complex seam patterns.
The equipment can be integrated with existing production lines such as the SY-700-X sewing line via conveyor systems and PLC communication using PROFINET protocol. On-site commissioning includes seal strength testing according to ASTM D1002 and production run validation to achieve a minimum of 20N/cm seam strength. Training includes 2 days of operator instruction on parameter adjustment and maintenance, with remote diagnostics capability for troubleshooting.
The machine works with aramid, PTFE, and glass fiber filter media, and can bond corresponding PTFE, aramid, and glass fiber tapes with either adhesive or heat-activated backings.
When properly calibrated, the machine produces seams with a minimum strength of 20N/cm, as verified by ASTM D1002 testing procedures.
Yes, the SY-9288 can be integrated with most existing production lines through conveyor systems and PLC communication using the PROFINET protocol.
